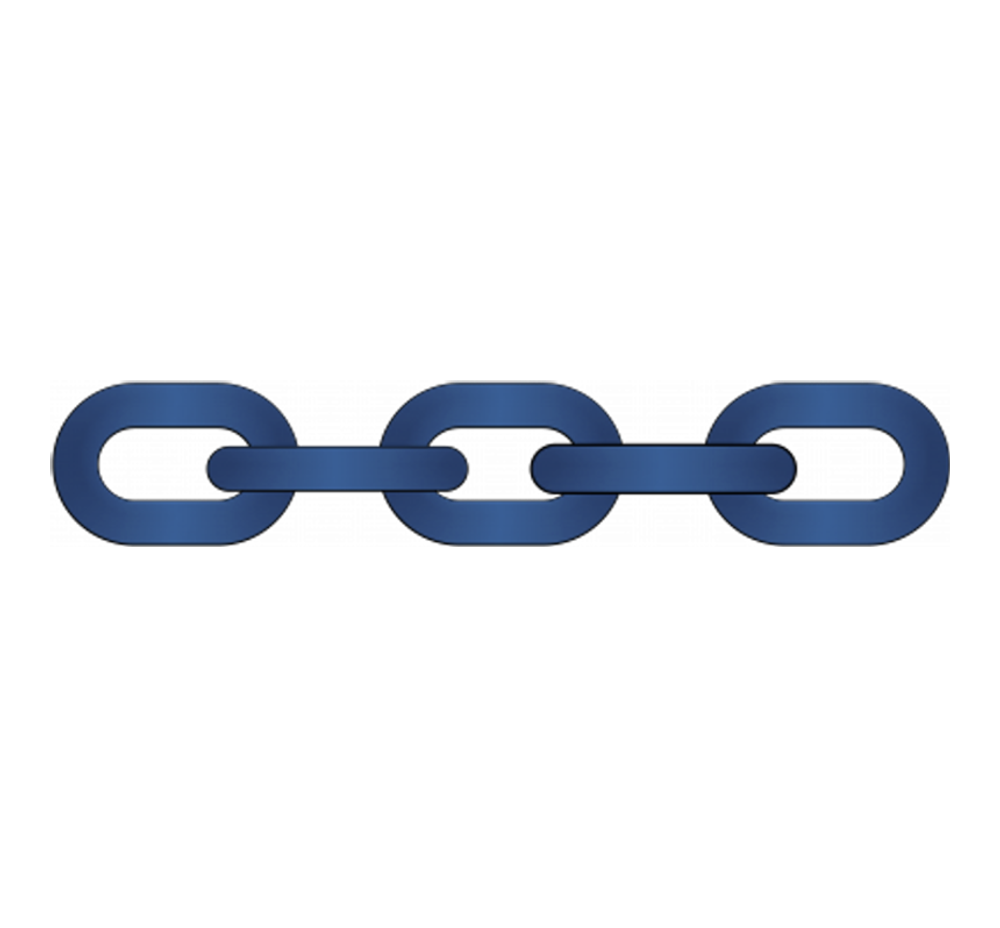

Studless Chain
Stud less Chain comes in a range of different grades and finishes and is generally more economical than Stud Link.
Stud less Chain comes in a range of different grades and finishes and is generally more economical than Stud Link.
Stud less Chain is usually utilized when weight is not as critical and allows for the ease of shackle connections into individual links. Jeyco Australia holds stock of Grade U2 Studless chains and can also supply Grade U3 upon request.
d = diameter
| Diameter (mm) | U2 Proof Load (Tonne-F) | U2 Break Load (Tonne-F) | U3 Proof Load (Tonne-F) | U3 Break Load (Tonne-F) | Weight (kg/m) |
|---|---|---|---|---|---|
| 12.5 | 4.2 | 8.4 | 5.8 | 11.5 | 3.1 |
| 14 | 5.2 | 10.4 | 7.2 | 14.4 | 3.9 |
| 16 | 6.8 | 13.5 | 9.4 | 18.8 | 5.1 |
| 17.5 | 8.0 | 16.1 | 11.3 | 22.5 | 6.4 |
| 19 | 9.5 | 19.1 | 13.3 | 26.6 | 7.9 |
| 20.5 | 11.1 | 22.2 | 15.5 | 30.9 | 8.8 |
| 22 | 12.8 | 25.6 | 17.8 | 35.6 | 9.5 |
| 24 | 15.3 | 30.5 | 21.2 | 42.4 | 12.4 |
| 26 | 17.9 | 35.8 | 24.9 | 50.0 | 14.7 |
| 28 | 20.8 | 41.5 | 28.9 | 57.7 | 16.7 |
| 30 | 23.9 | 46.7 | 33.1 | 66.3 | 18.0 |
| 32 | 27.1 | 54.2 | 37.7 | 75.4 | 20.5 |
| 34 | 30.6 | 61.2 | 42.6 | 85.1 | 24.2 |
| 36 | 34.3 | 68.6 | 47.7 | 95.4 | 27.0 |
| 38 | 38.2 | 76.3 | 53.2 | 106.3 | 30.3 |
| 40 | 42.3 | 84.5 | 58.9 | 117.8 | 35.3 |
| 42 | 46.7 | 93.3 | 64.9 | 129.9 | 36.8 |
| 44 | 51.3 | 101.9 | 71.3 | 142.5 | 39.8 |
| 46 | 56.0 | 111.9 | 77.9 | 155.8 | 44.3 |
| 48 | 61.0 | 121.9 | 84.8 | 169.6 | 49.8 |
| 50 | 66.2 | 131.9 | 92.0 | 184.1 | 54.3 |
All dimensions are approximate. Additional sizes available upon request.
