Navigation Lighting

Solar Marine Lanterns

Jeyco supplies self-contained solar marine lanterns for navigation, marking and warning applications. Available in three models to suit different visibility ranges, the lanterns combine solar charging, LED technology and automatic dusk-to-dawn operation in a compact, weather-resistant unit.

Solar powered and self-contained
IP68 waterproof construction
Automatic dusk-to-dawn operation
Replaceable lithium battery
360° horizontal light output
Available in red, green, white, yellow and blue

Enquire About This Product Back to Buoyancy & Navigational Aids

Range Overview

Three Models, Different Ranges

JEY-LS-C

Compact Solar Lantern 1-2 NM visibility

A compact, self-contained lantern suited to small buoys, pontoons, docks, aquaculture and general marine marking.

JEY-LS-E

Extended Range Lantern 2-3+ NM visibility

A higher output lantern suited to mooring buoys, navigation marks, channels, ports and applications requiring greater visibility.

JEY-LS-H

High Output Lantern 5+ NM visibility

Our highest output solar lantern, suited to major navigation marks, ports and other long-range applications.

Technical Specifications

Model Comparison

Specification	JEY-LS-C	JEY-LS-E	JEY-LS-H
Visible / night range	1-2 NM	2-3+ NM	5+ NM
Light source	LED	LED	LED
Horizontal output	360°	360°	360°
Vertical divergence	0-30°	8°	8°
Flash patterns	0.5 sec on, 4.5 sec off	Selectable IALA patterns	Selectable IALA patterns
Intensity adjustment	N/A	4 levels	4 levels
Automatic night activation	Yes	Yes	Yes
Available colours	Red, Green, White, Yellow, Blue	Red, Green, White, Yellow, Blue	Red, Green, White, Yellow, Blue
Solar panel	1.2 W mono-crystalline	1.8 W multicrystalline	2.5 W multicrystalline
Battery type	Lithium (replaceable)	Lithium (replaceable)	Lithium (replaceable)
Battery capacity	3.2 V / 2.0 Ah	3.2 V / 6 Ah (8 Ah optional)	6.4 V / 12 Ah (18 Ah optional)
Minimum autonomy	> 20 days (10 hrs/day)	> 20 days (12 hrs darkness)	> 20 days (12 hrs darkness)
LED life	Up to 100,000 hours	> 100,000 hours	> 100,000 hours
Operating temperature	-40°C to +60°C	-40°C to +80°C	-40°C to +80°C
Waterproof rating	IP68	IP68	IP68
Body material	UV-stabilised polycarbonate	UV-stabilised polycarbonate	UV-stabilised polycarbonate
Height (mm)	95	190	204
Width (mm)	Ø118	Ø186	Ø215
Weight	0.3 kg	1.0 kg	3.2 kg

Dimensions

JEY-LS-C, JEY-LS-E & JEY-LS-H

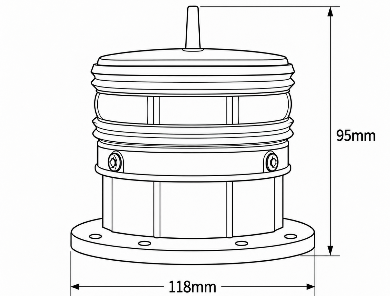

JEY-LS-C dimension drawing: height 95 mm, base diameter 118 mm — **JEY-LS-C**Height 95 mm, base Ø118 mm

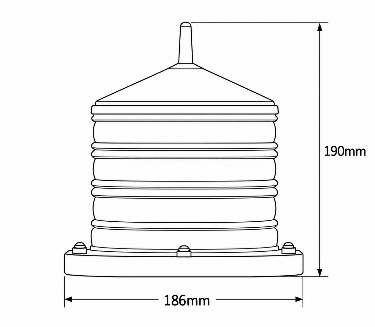

JEY-LS-E dimension drawing: height 190 mm, base diameter 186 mm — **JEY-LS-E**Height 190 mm, base Ø186 mm

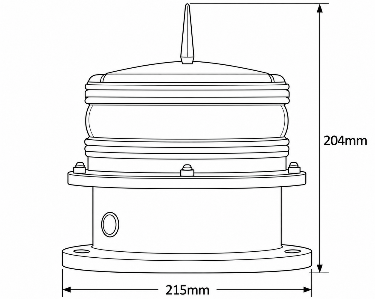

JEY-LS-H dimension drawing: height 204 mm, base diameter 215 mm — **JEY-LS-H**Height 204 mm, base Ø215 mm

All dimensions in mm. Specifications are typical values and may change without notice.
