HMPE Rope · Cost Efficient

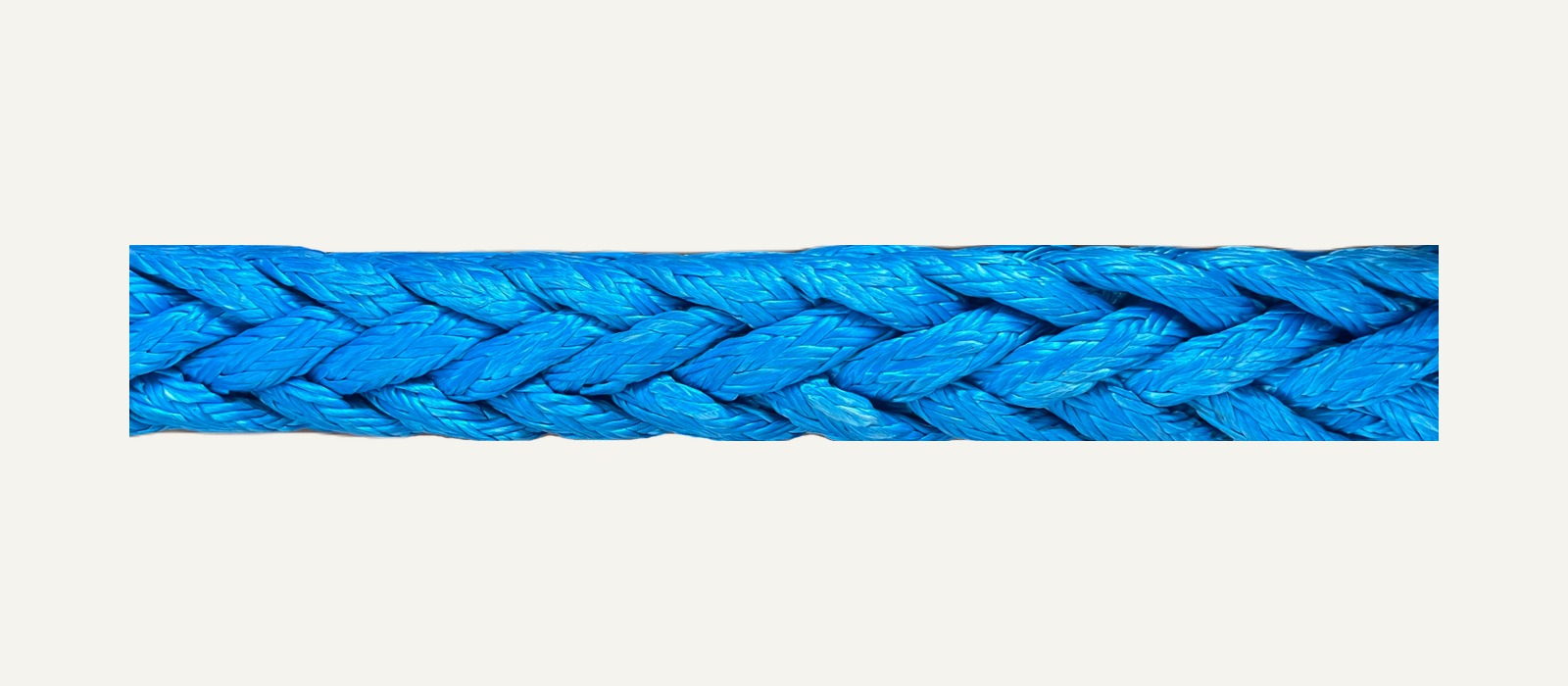

Jeyflex 12x12 Strand HMPE

Jeyflex 12x12 is a 12-strand braided rope in which each of the 12 strands is, in turn, a 12-strand rope, or braided primary strand, optimised for demanding applications such as tug and barge towing and mooring lines.

12x12 construction for higher abrasion resistance
Repairable primary strands
Highest strength to weight ratio of any fibre
Low creep
High chemical resistance
Safer than wire
Very low elongation
Easy to splice

Enquire About This Product Back to Fibre Ropes

Specific Gravity.98*

Melting Point150°C

Critical Temp.70°C

Elongation at Break3.5%

Coefficient of Friction0.09-0.12*

Floats / SinksFloats

UV ResistanceModerate

Wet AbrasionSuperior

Dry AbrasionSuperior

This design has long lay lengths, making the rope more flexible for bending applications, easy to inspection and handing, and can be quickly spliced using standard 12 strand splicing techniques.

* value based on data supplied by the fibre manufacturer for new, dry fibre.

Sizing & Specifications

Dimensions & Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ.	Approx. Weight (Kg/100m)	Min. Tensile Spliced (Te)	Min. Tensile ISO Unspliced (Te)
1 5/8″	40	5″	92	131.0	145.4
1 3/4″	44	5 1/2″	114	157.0	174.3
2″	48	6″	130	181.0	200.9
2 1/8″	52	6 1/2″	159	201.0	223.1
2 1/4″	56	7″	180	230.0	255.3
2 1/2″	60	7 1/2″	219	268.0	297.0
2 5/8″	64	8″	237	320.0	355.0
2 3/4″	68	8 1/2″	268	360.0	399.6
3″	72	9″	317	400.0	444.0
3 1/8″	76	9 1/2″	348	450.0	499.5
3 1/4″	80	10″	381	500.0	555.0
4 1/4″	104	13″	760	850	943.5

Other sizes available on request. Contact us to confirm current lead times and pricing.
