Green Pin Safety Dee Shackles

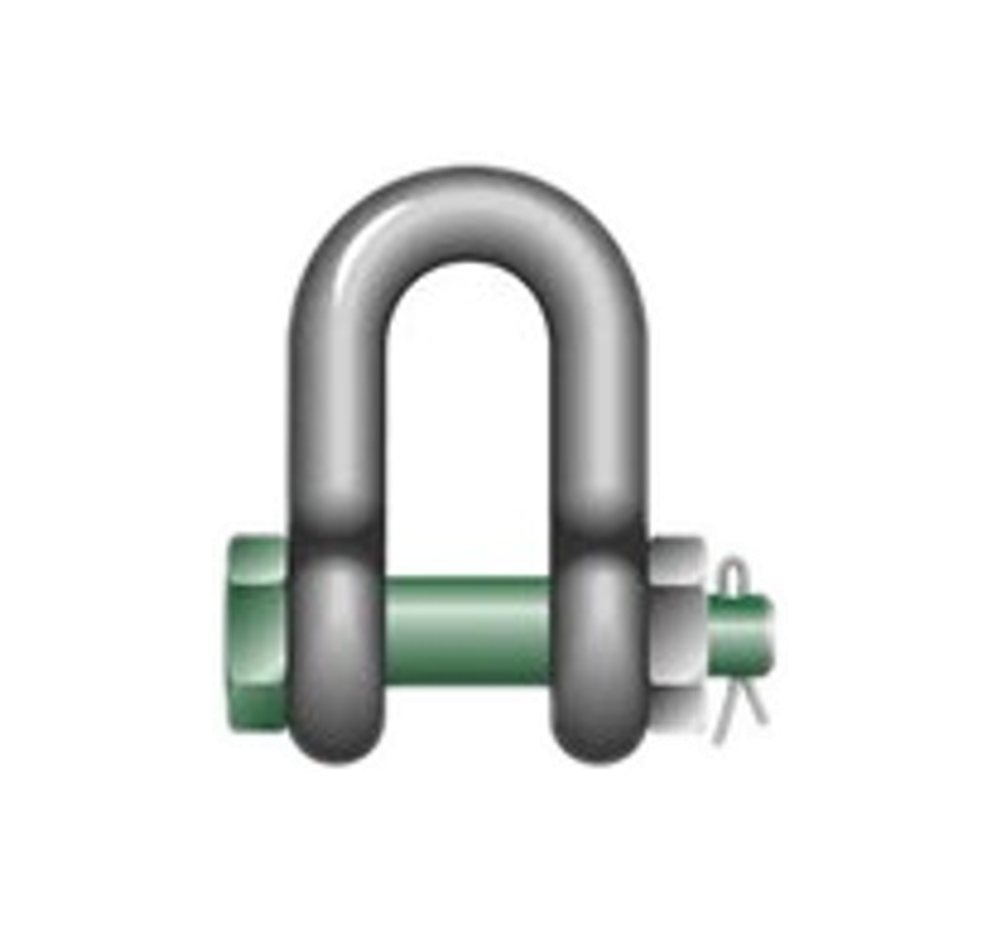

Dee (D-shaped) shackles from the Green Pin range fitted with a safety pin for a secure, vibration-resistant connection, rated from 2 to 85 tonnes WLL.
Dee (D-shaped) shackles from the Green Pin range fitted with a safety pin for a secure, vibration-resistant connection, rated from 2 to 85 tonnes WLL.
Ref. diagram for a to i
| WLL (ton) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | h (mm) | i (mm) | Net weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 13.5 | 16 | 34 | 13 | 22 | 43 | 82 | 80 | 13 | 0.39 |
| 3.25 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 98 | 17 | 0.67 |
| 4.75 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 115 | 19 | 1.08 |
| 6.5 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 130 | 22 | 1.66 |
| 8.5 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 150 | 25 | 2.46 |
| 9.5 | 28 | 32 | 67 | 28 | 47 | 90 | 168 | 166 | 27 | 3.4 |
| 12 | 32 | 35 | 73 | 32 | 51 | 94 | 180 | 184 | 30 | 4.51 |
| 13.5 | 35 | 38 | 79 | 35 | 57 | 115 | 209 | 197 | 33 | 6.1 |
| 17 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 202 | 19 | 7.63 |
| 25 | 45 | 50 | 104 | 45 | 74 | 149 | 271 | 243 | 23 | 12.9 |
| 35 | 50 | 57 | 112 | 50 | 83 | 171 | 306 | 269 | 26 | 17.4 |
| 42.5 | 57 | 65 | 132 | 57 | 95 | 190 | 346 | 301 | 29 | 25.9 |
| 55 | 65 | 70 | 145 | 65 | 105 | 203 | 376 | 329 | 32 | 35.3 |
| 85 | 75 | 83 | 167 | 75 | 127 | 229 | 429 | 381 | 39 | 53 |
a: diameter bow · b: diameter pin · c: diameter eye · d: width eye · e: width inside · f: length inside · g: length · h: length bolt · i: thickness nut
Other sizes available on request. Contact us to confirm current lead times and pricing.
