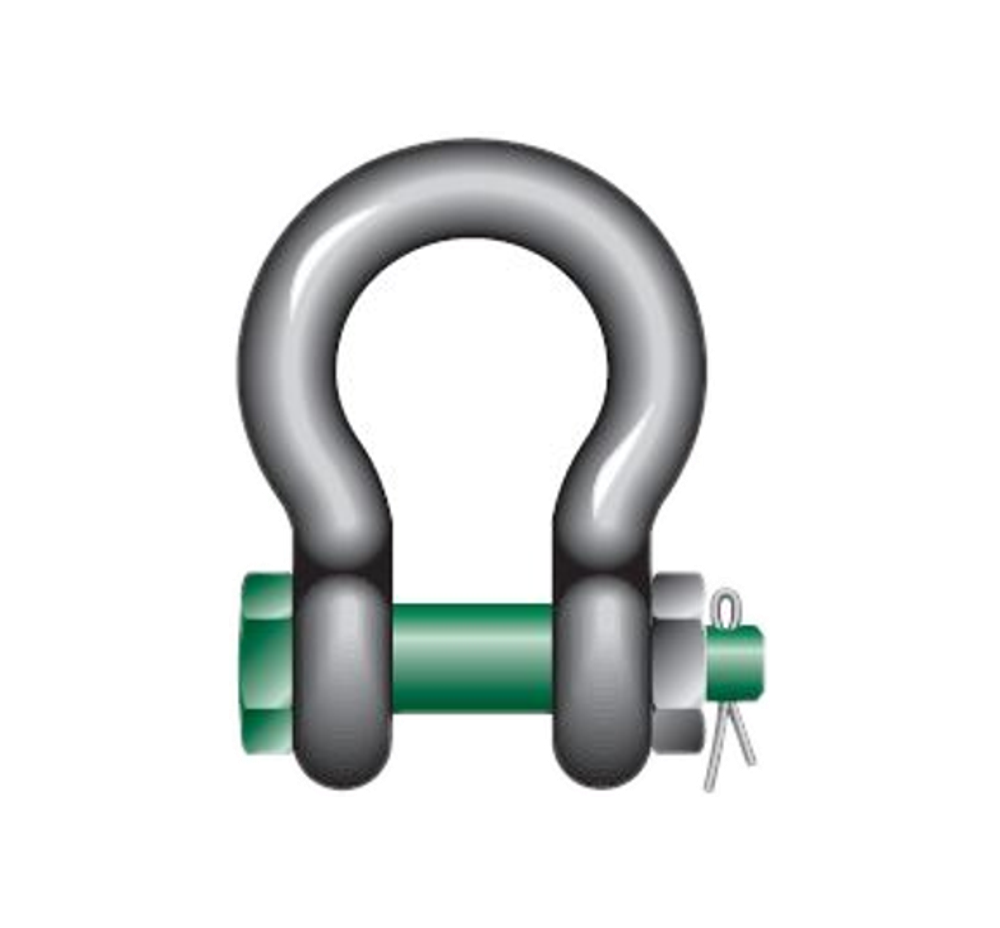

Green Pin Safety Bow Shackles

Bow shackles from the Green Pin range fitted with a safety pin (nut and cotter pin) for a secure, vibration-resistant connection, rated from 0.5 to 85 tonnes WLL.

Enquire About This Product Back to Chains & Fittings

Sizing & Specifications

Dimensions & Ratings

green pin safety bow shackles dimension diagram

Ref. diagram for a to k

WLL (ton)	a (mm)	b (mm)	c (mm)	d (mm)	e (mm)	f (mm)	g (mm)	h (mm)	i (mm)	j (mm)	k (mm)	Net weight (kg)
0.5	7	8	16	7	12	29	20	48	42	34	4	0.06
0.75	9	10	20	9	13.5	32	22	56	50	40	5	0.11
1	10	11	23	10	17	37	26	64	60	46	8	0.15
1.5	11	13	25	11	19	43	29	73	67	51	11	0.22
2	13.5	16	34	13	22	51	32	90	80	59	13	0.42
3.25	16	19	40	16	27	64	43	110	98	75	17	0.74
4.75	19	22	46	19	31	76	51	129	115	89	19	1.18
6.5	22	25	52	22	36	83	58	144	130	102	22	1.77
8.5	25	28	59	25	43	95	68	164	150	118	25	2.58
9.5	28	32	67	28	47	108	75	186	166	131	27	3.66
12	32	35	73	32	51	115	83	201	184	147	30	4.91
13.5	35	38	79	35	57	133	92	227	197	162	33	6.54
17	38	42	88	38	60	146	99	249	202	175	19	8.19
25	45	50	104	45	74	178	126	300	243	216	23	14.0
35	50	57	112	50	83	197	138	332	269	238	26	18.8
42.5	57	65	132	57	95	222	160	378	301	274	29	28.3
55	65	70	145	65	105	260	180	433	329	310	32	39.6
85	75	83	167	75	127	330	190	530	381	340	39	62

a: diameter bow · b: diameter pin · c: diameter eye · d: width eye · e: width inside · f: length inside · g: width bow · h: length · i: length bolt · j: width · k: thickness nut

Other sizes available on request. Contact us to confirm current lead times and pricing.
